From FMTV to WATERS: Lessons Learned from the First Verification Challenge at ECRTS (Invited Paper)

From FMTV to WATERS: Lessons Learned from the First Verification Challenge at ECRTS (Invited Paper)

Verification Time Petri Nets Use Case Fiacre Tina
Table of Contents

Sebastian Altmeyer, Étienne André, Silvano Dal Zilio, Loïc Fejoz, Michael González Harbour, Susanne Graf, J. Javier Gutiérrez, Rafik Henia, Didier Le Botlan, Giuseppe Lipari, Julio Medina, Nicolas Navet, Sophie Quinton, Juan Rivas, Youcheng Sun
In ECRTS 2023 — 35th Euromicro Conference on Real-Time Systems, jul 2023.

conference paper

 DOI〈10.4230/LIPIcs.ECRTS.2023.19〉  HAL-04654624

Abstract
#

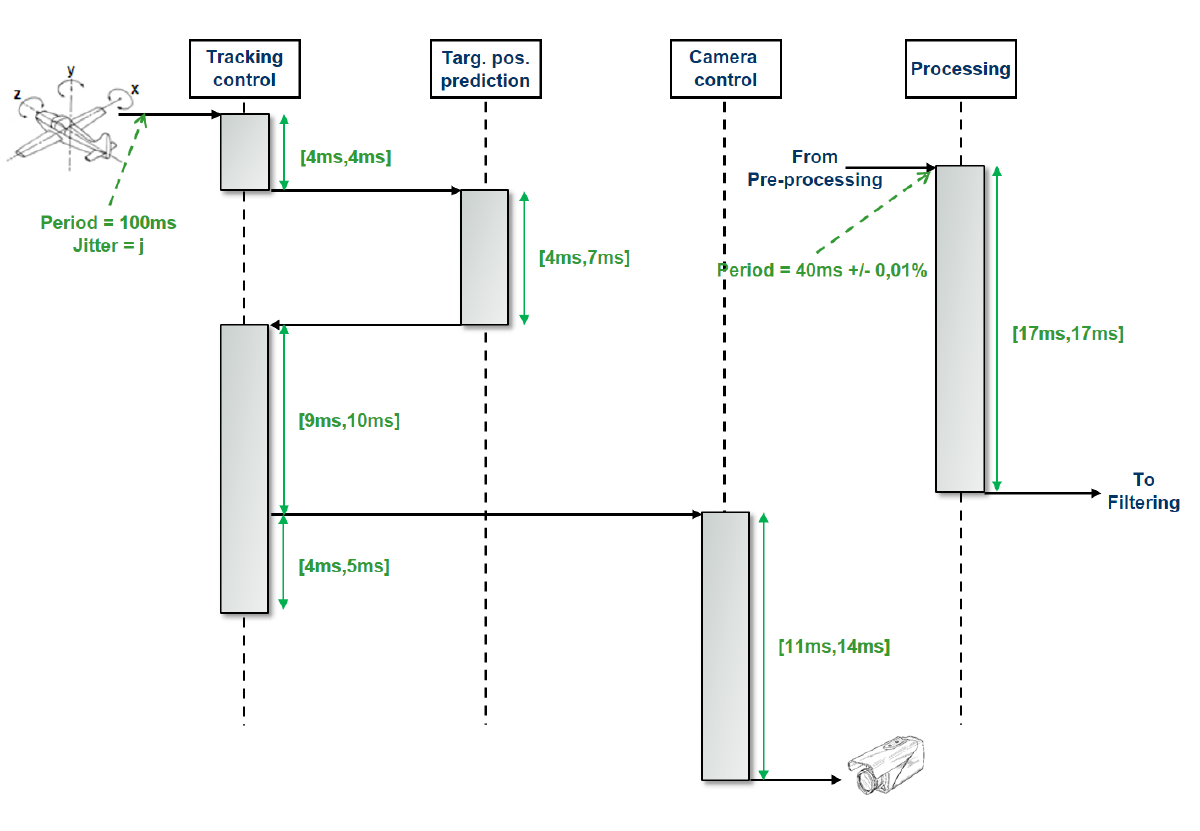

We present here the main features and lessons learned from the first edition of what has now become the ECRTS industrial challenge, together with the final description of the challenge and a comparative overview of the proposed solutions. This verification challenge, proposed by Thales, was first discussed in 2014 as part of a dedicated workshop (FMTV, a satellite event of the FM 2014 conference), and solutions were discussed for the first time at the WATERS 2015 workshop. The use case for the verification challenge is an aerial video tracking system. A specificity of this system lies in the fact that periods are constant but known with a limited precision only. The first part of the challenge focuses on the video frame processing system. It consists in computing maximum values of the end-to-end latency of the frames sent by the camera to the display, for two different buffer sizes, and then the minimum duration between two consecutive frame losses. The second challenge is about computing end-to-end latencies on the tracking and camera control for two different values of jitter. Solutions based on five different tools - Fiacre/Tina, CPAL (simulation and analysis), IMITATOR, UPPAAL and MAST - were submitted for discussion at WATERS 2015. While none of these solutions provided a full answer to the challenge, a combination of several of them did allow to draw some conclusions.

References
#

  • A companion paper, describing the artifacts used to answer the challenge appears in Dagstuhl Artifacts Series (DARTS) 9(1), jul 2023.  Link

Citation
#


@InProceedings{DalzilioS:ecrts2023waters,
   author    = {Altmeyer, Sebastian and André, Étienne and {Dal Zilio}, Silvano and Fejoz, Loïc and {González Harbour}, Michael and Graf, Susanne and Gutiérrez, J. Javier and Henia, Rafik and {Le Botlan}, Didier and Lipari, Giuseppe and Medina, Julio and Navet, Nicolas and Quinton, Sophie and Rivas, Juan and Sun, Youcheng},
   title     = {{From FMTV to WATERS: Lessons Learned from the First Verification Challenge at ECRTS (Invited Paper)}},
   booktitle = {ECRTS 2023 -- 35th Euromicro Conference on Real-Time Systems},
   series    = {Leibniz International Proceedings in Informatics (LIPIcs)},
   volume    = {262},
   publisher = {Schloss Dagstuhl},
   doi = {10.4230/LIPIcs.ECRTS.2023.19},
   month     = jul,
   year      = 2023
}
